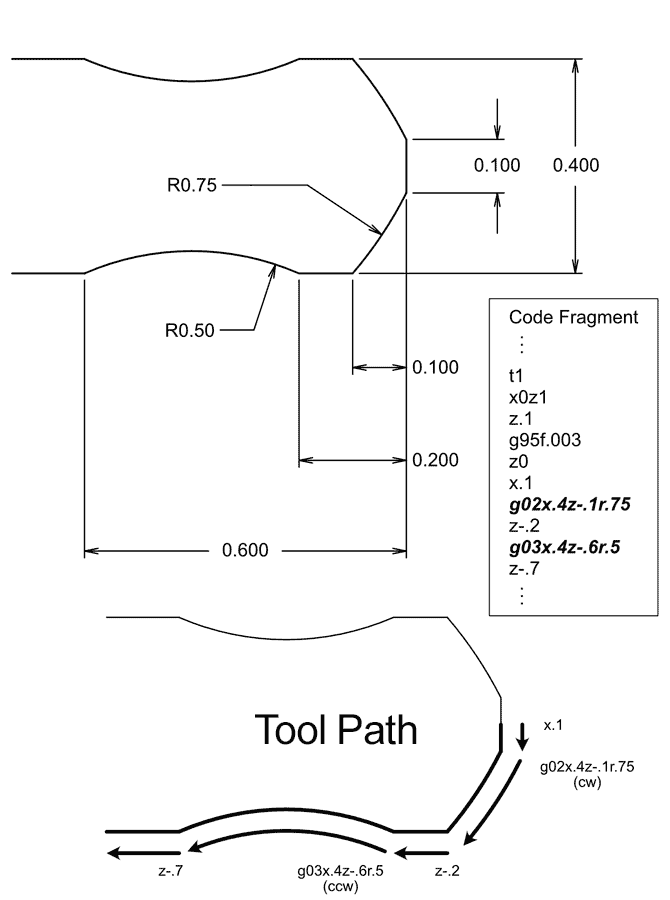

G02 and G03 Arcs by Radius Example (G02XnZnRn)
See also Arcs by center of arc

G02:

Clockwise

G03:

Counter clockwise

Xn:

X location (Ø) at the end of the arc

Zn:

Z location of end of the arc

Rn:

Radius of the arc

Position tool at start of arc before calling arc move.

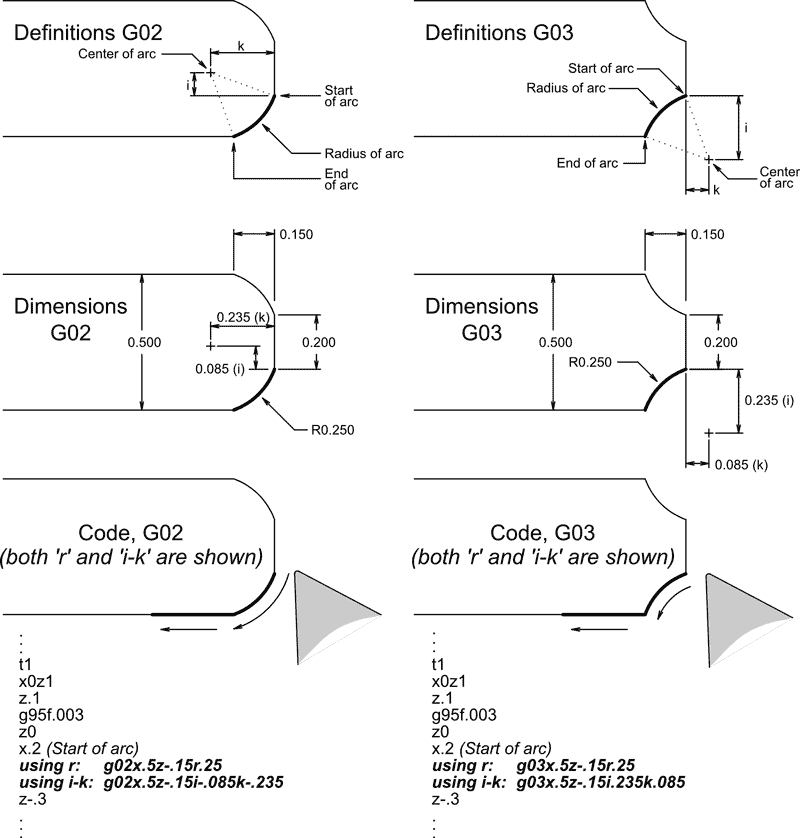

Some definitions
