OmniTurn New Generation CNC

The original OmniTurn CNC control has served productively for twenty-seven years on thousands of turning-machines nation-wide. The new G4 control uses the latest ethernet technology for simpler and faster CNC Control. The standard control ships with three-axis simultaneous servo control (X, Z & C); a fourth simultaneous axis is available as an option. Using ethernet to connect the motion card to the computer requires fewer connections and less hardware, which increases reliability.


Good news for OmniTurn Users:
The G4 control is designed to replace an older generation OmniTurn controller. Requires some minor re-wiring in electronics cabinet and you're ready to run parts in minutes. All of your old programs are compatible with the new G4 control. NOTE: Some older spindle encoders are incompatible with the G4 CNC. If this is the case, we will offer a discount on a new encoder.

OmniTurn   GT-75 Turning Center
 Fast... Precise... Affordable...

Easy Access • Modular Design

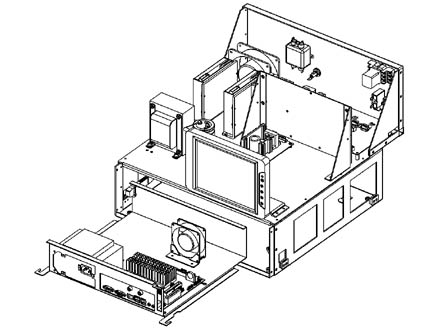

Computer slides out for maintenance; easy access to all components.

All motion-control related components are accessible from the top. To access the computer only the front panel needs to be removed. Fan-cooled, sealed enclosure stays cool and clean. Upper chassis fan blows directly on servo amps. Lower chassis fan cools energy-efficient Mini ITX motherboard. Motherboard has one PCI slot for network card; 128MB solid-state hard-drive.

Computer Slides Out


Some advantages of the G4 CNC: Faster servo update time resulting in better finishes and tighter arc blending • Three ways to input a program: RS-232, keyboard and USB memory stick • Color LCD display and enhanced user display • One-year warranty on all CNC control components • High capacity solid state hard drive • Four axis simultaneous control • On-screen display of tool number & true position • Plane-switching for milling

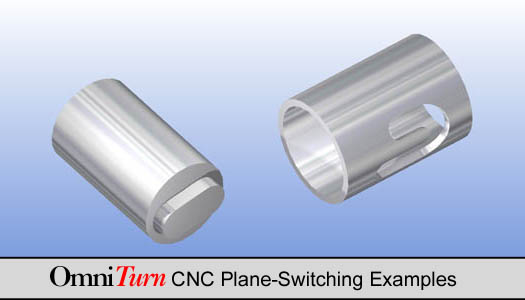

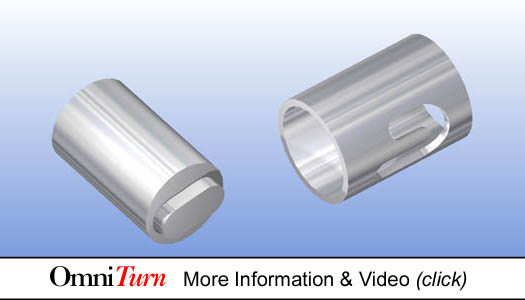

J-slot milled in tube J-slot milled in tube (link to more info


CNC Features:

General

CPU . . . . Energy-efficient VIA C3 Processor (800MHz)
Program Storage. . . . . . . . . . . . . . . . . 128MB* Internal
Program Backup & Transfer . . . . . . USB Memory Stick
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RS-232
Max Program Size . . . . . . . . . . . . . . . . . . 5000 Blocks
Tool Offsets . . . . . . . . . . . . . . . . . . 32 Primary Offsets
  . . . . . . . . . . . . . . . . . . . . . . . . . 32 Secondary Offsets
*Expandable to 16GB

Front Panel

Feed Rate Override Knob . . . . . . . . . . . . . . . 0 - 150%
Spindle Speed Override Knob . . . . . . . . . . . . 0 - 150%
X & Z Jog Stick . . . . . . . . . . . . 0.0005' - 1' Incremental
. . . . . . . . . . . . . . . . . . . . 1'/min - 100'/min Continuous
C-Axis Jog Stick (opt.) . . . . . . . 0.01° - 90° Incremental
 . . . . . . . . . . . . . . . . . . Slow, Medium, Fast Continuous

Auxilliary I/O

Standard . . . . . . . . . . . . . . . . . Five Aux M-Functions
 . . . . . . . Three Aux Inputs (incl. one conditional jump)
Expanded I/O . . . . . . . . . .Mitsubishi PLC up to 30 I/O

Special Features

Plane-switching allows programming as mill, for
features on face or side of part.

Any X & Z move can be synchronized to spindle for
custom threads, etc.

Compatible with auto-vision to orient part in spindle.
Plug-Compatible with existing OmniTurn machines.
