OmniTurn ZipLoader Legacy Air Panels
The previous air panels, used on the ZipLoader since 2003 are shown directly below. Component function and part numbers are included for air solenoids, regulators, flow-control, and pressure relief valve mounted on this panel. Other ZipLoader parts are available here.

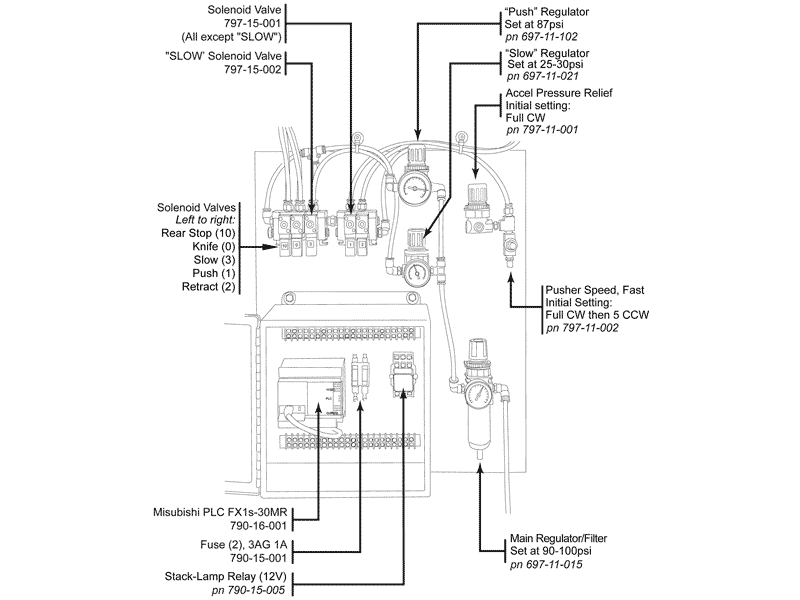

Air Panel With Accel Pressure Relief

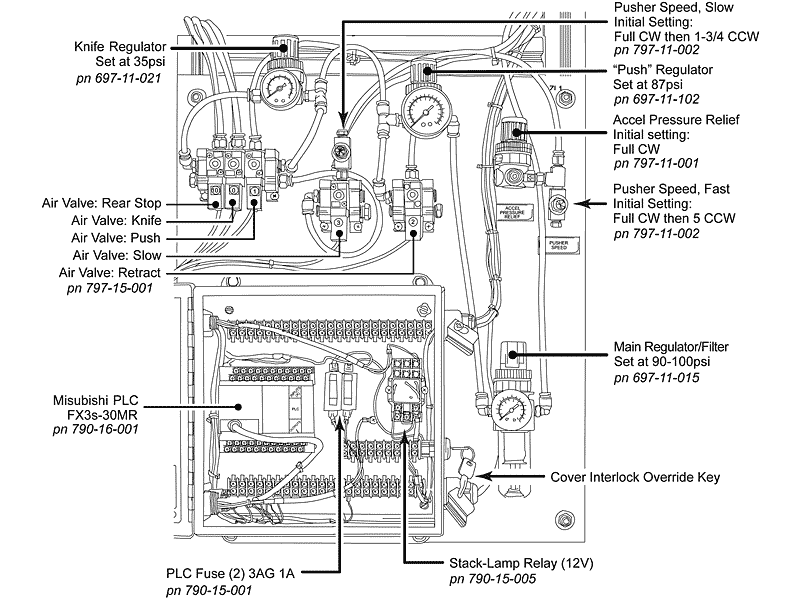

Air Panel With Fast Retract

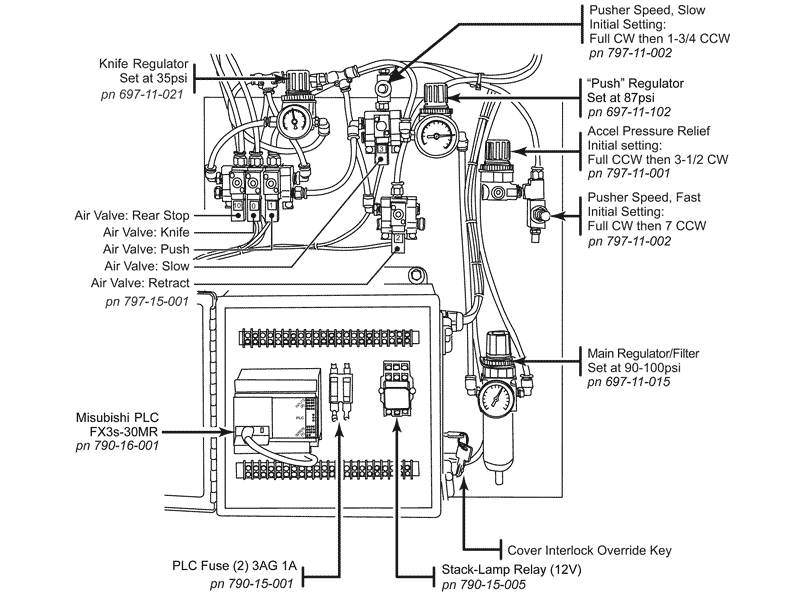

Air Panel With Needle Valve Slow Control

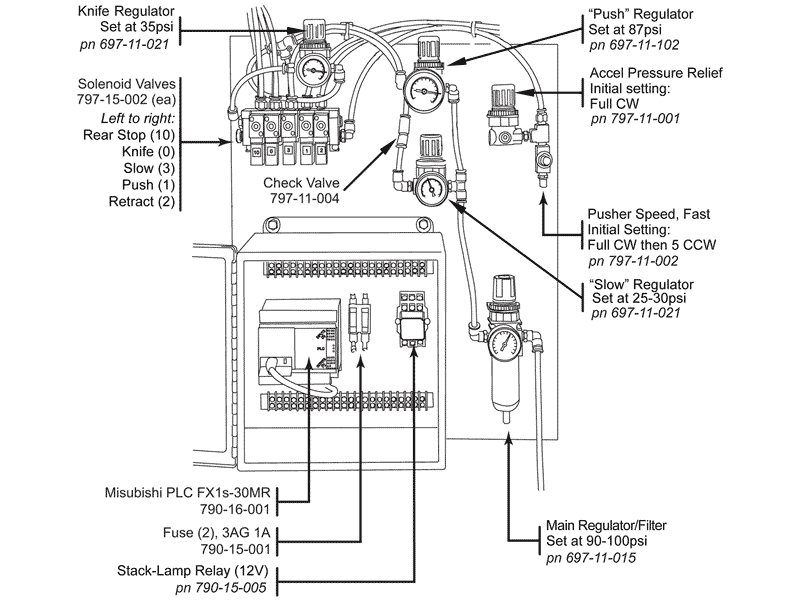

Air Panel With Knife Pressure Regulator

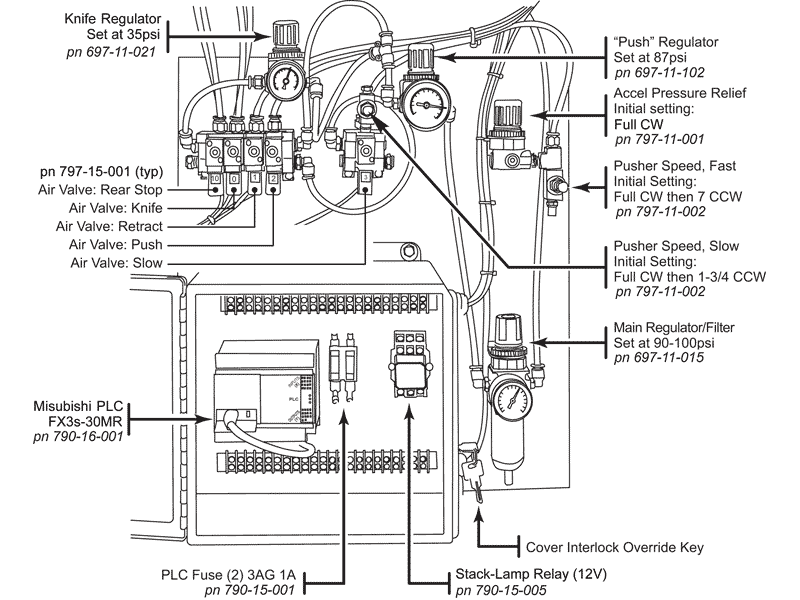

Air Panel With Single MAC Valve Stack

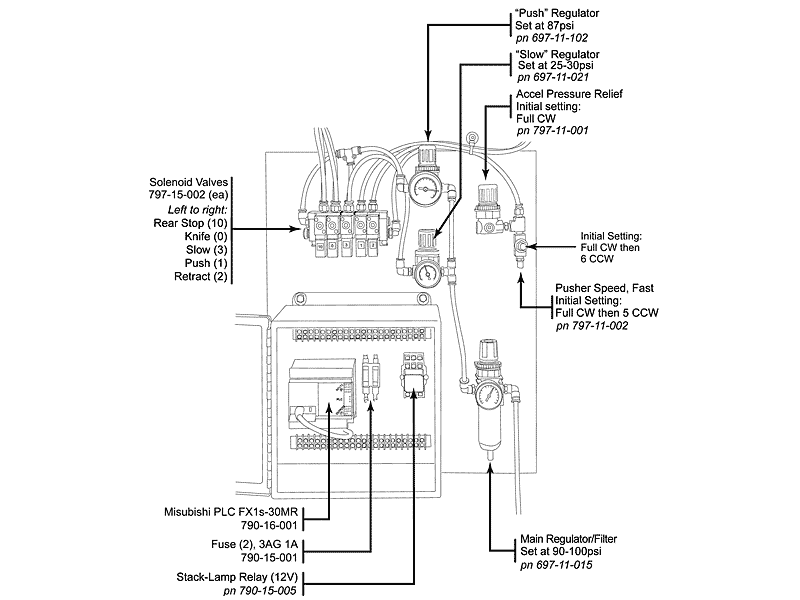

Air Panel With Rear-Qualify Capability

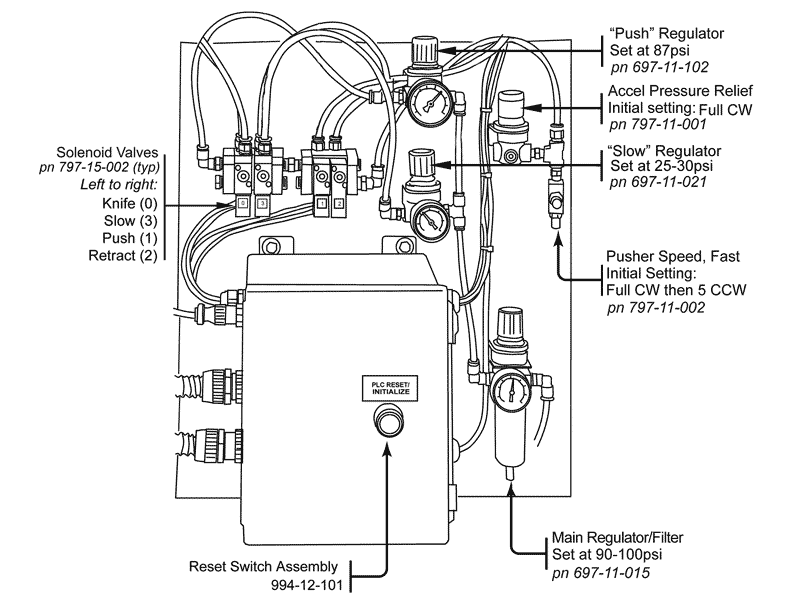

Earliest Air Panel With MR-20 PLC
