OmniTurn ZF Micro CMOS Screens

ZF Micro motherboards were sold as replacements starting about 2010.
To enter CMOS setup, tap the F2 key when the "splash" screen appears.
After "entering setup" prompt, the CMOS main screen should appear.

Goto DMI Pool Error
Goto Change Boot-sequence

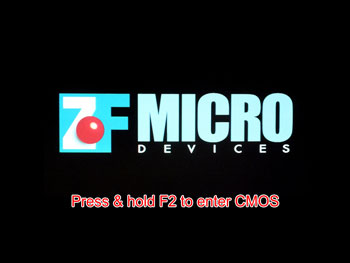

ZF Micro "Splash"

CMOS Main Screen

Possible solution for Verifying DMI Pool Data error:

In CMOS Main Screen, with System Time highlighted, use "+" or "-" key to change the time. Press F10 to save CMOS and exit.

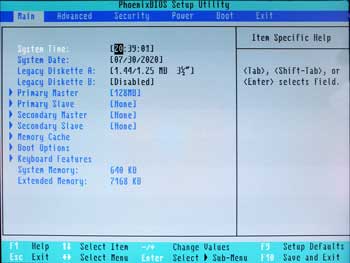

CMOS Main Screen

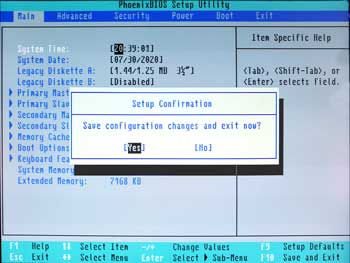

Save & Exit

To change boot-sequence:

From CMOS Main Screen, use left arrow to highlight Boot tab. Use "+" or "-" key to put Hard Drive at top. Press F10 to save CMOS and exit.

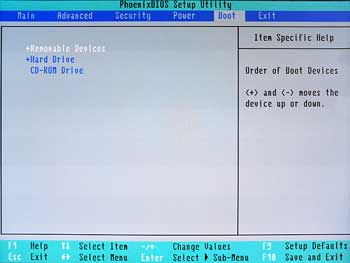

CMOS Boot Screen

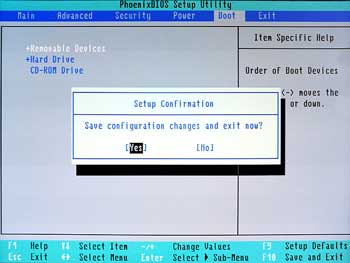

Save & Exit
