Removable Thru-Spindle Air Blast Option

The through-spindle air-blast option is very effective for clearing chips while boring, grooving or threading id thru-holes. Also useful to eject parts. Solenoid valve with 2.89Cv provides about air at about 30scfm through Loc-Line® flexible tubing into drawtube to collet. M-function controlled.

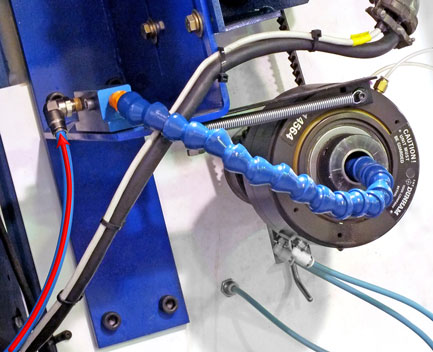

Air Flow thru Loc-Line®

Image of dedicated thru-spindle air-blast option

30cfm Air Valve

Image of air-valve control for thru-spindle airiblast
