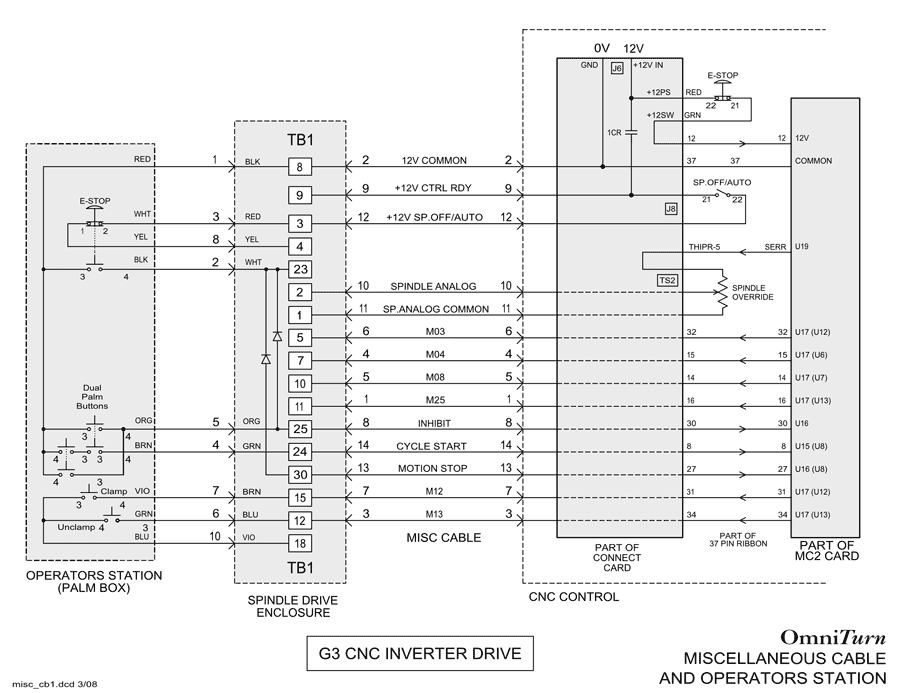

Schematic of Misc Cable and Palm-box for G3 CNC

This schematic of the MISC cable and Operator's Station (Palm Box) is useful for general troubleshooting. It is a copy of page 6.17 of the G3 (Legacy) Manual.
