G74 Box Roughing Example (G74XnZn­InUnFn)

Xn: X corner of the box to be roughed out
Zn: Z corner of the box to be roughed out
In: Maximum depth of cut per side per pass
Un: Necessary but ignored; adjust X & Z values to leave material
Fn: Feed rate, IPR

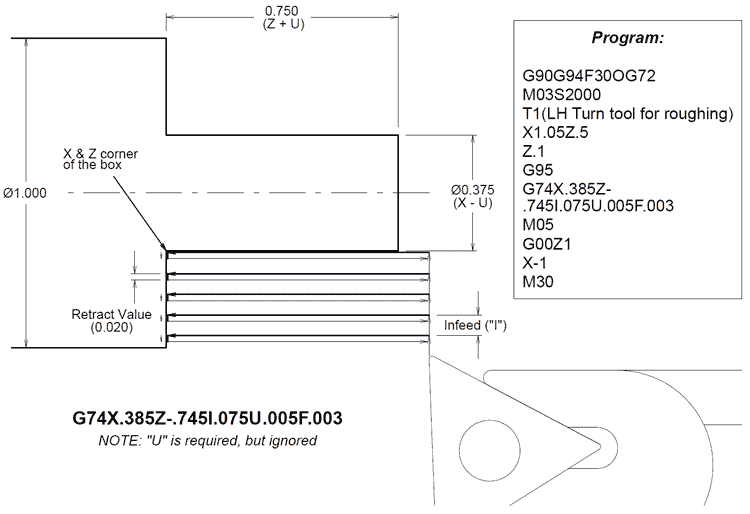

Image of G74 Box Roughing Example
