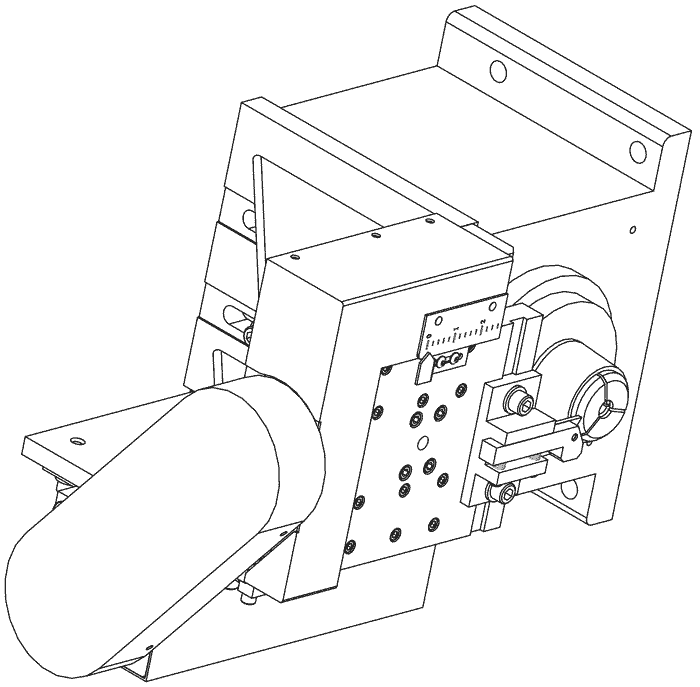

Vertical Cut-off (VCO) Replacing the Motor

Vertical Cut-off (VCO) Replacing the Motor:
1-Remove the Belt Cover

Vertical Cut-off (VCO) Replacing the Motor:

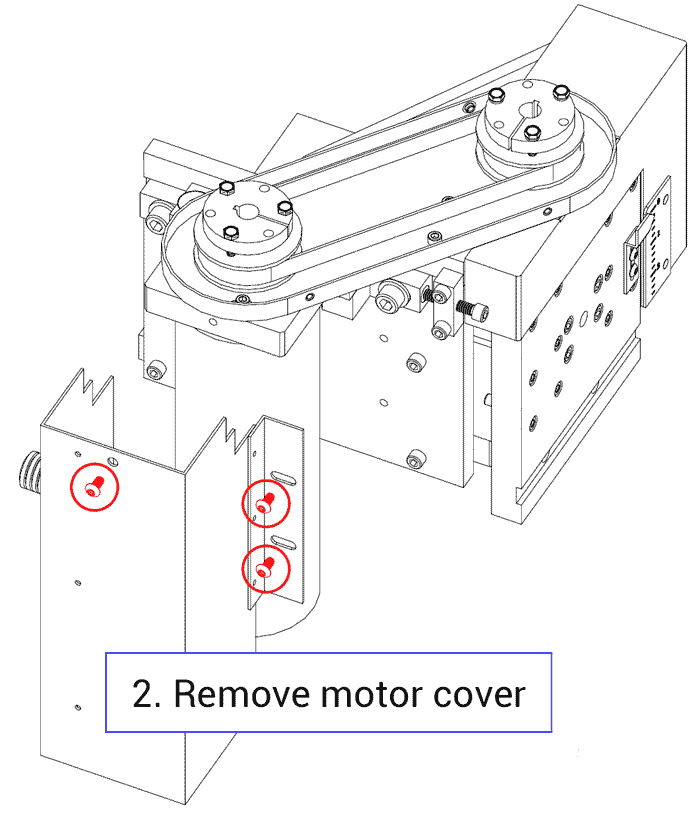

2-Remove the Motor Cover

Vertical Cut-off (VCO) Replacing the Motor:
3-Loosen These Screws

Vertical Cut-off (VCO) Replacing the Motor:

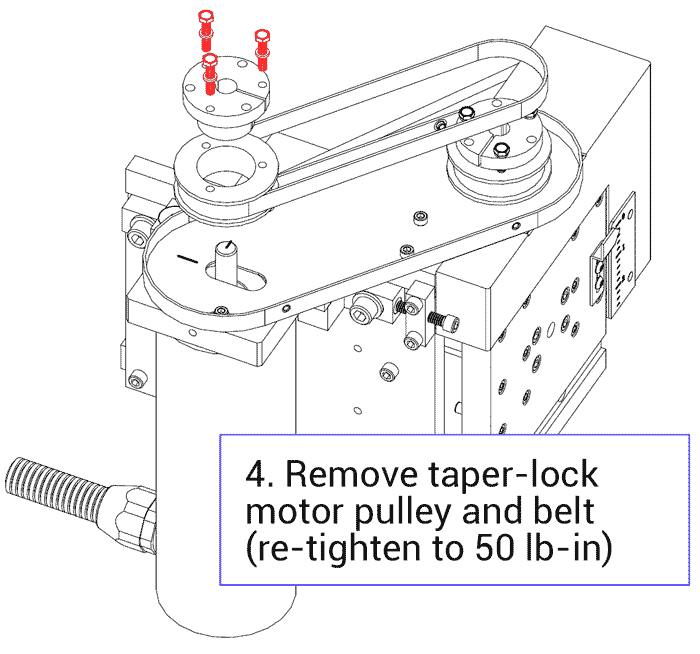

4-Remove Pulley

Vertical Cut-off (VCO) Replacing the Motor:

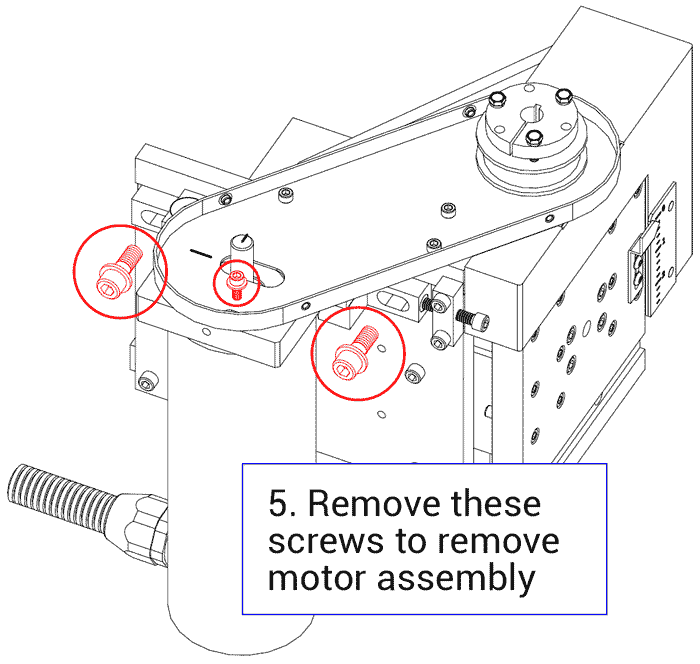

5-Remove These Screws

Vertical Cut-off (VCO) Replacing the Motor:

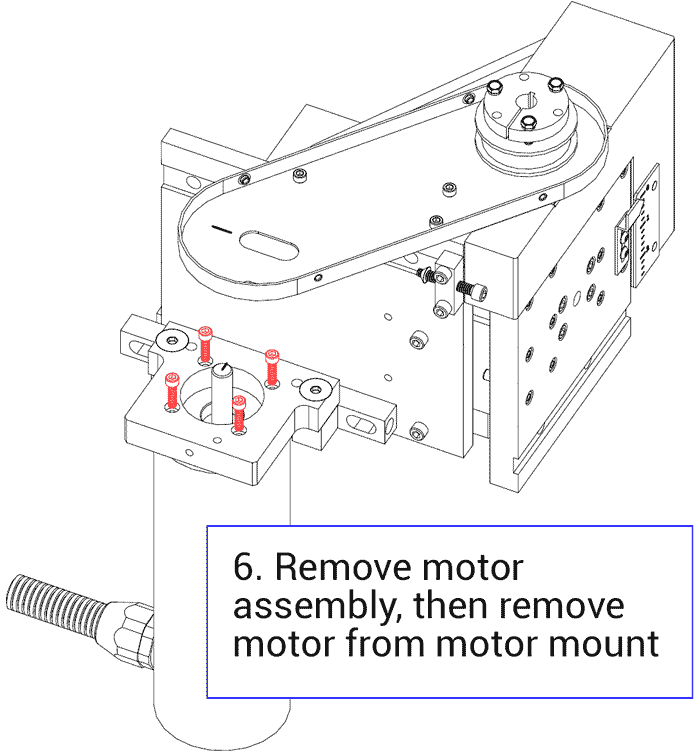

6-Remove Motor Assembly

Vertical Cut-off (VCO) Replacing the Motor:

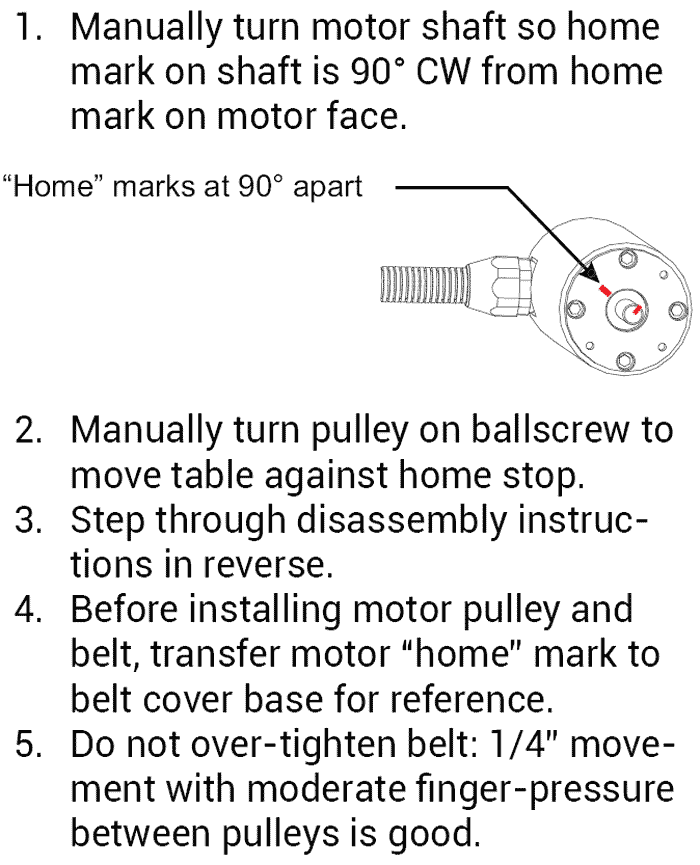

Re-install the Motor

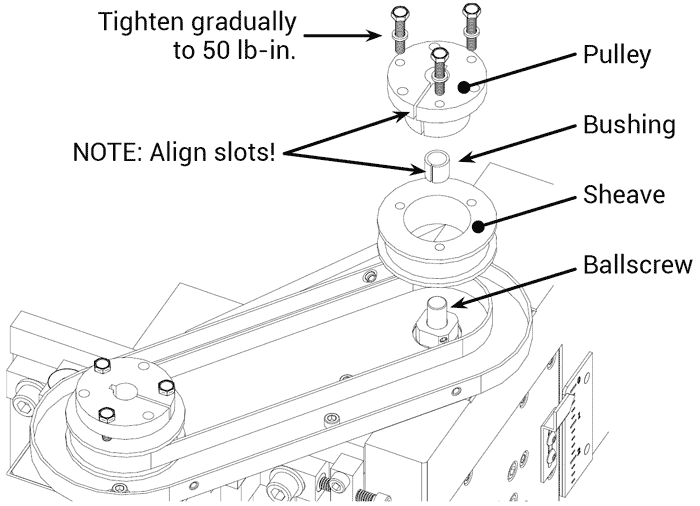

Vertical Cut-off (VCO) Ballscrew Pulley Bushing

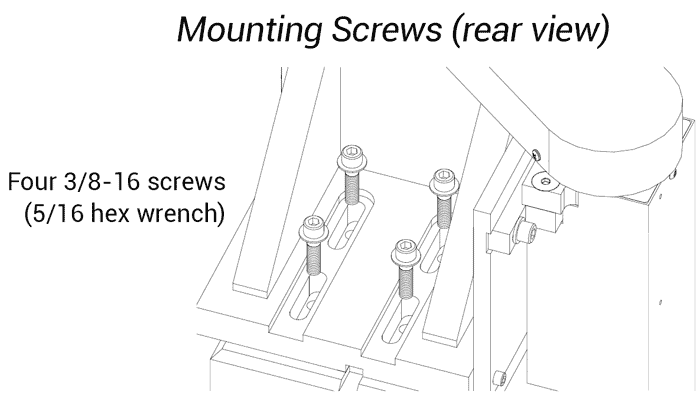

Vertical Cut-off (VCO) Headstock Mounting Screws
