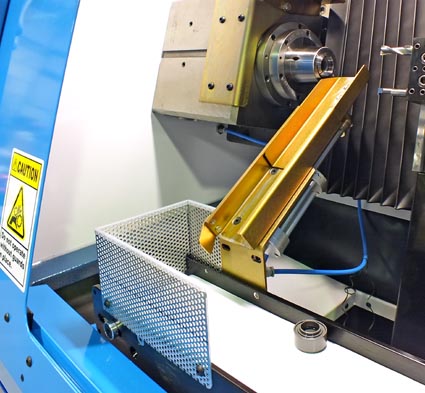

The OmniTurn Parts Diverter (893‑01‑300) is a telescoping chute which guides finished parts out of the collet and onto a conveyor.
The assembly mounts to the parts conveyor (499‑39‑100) and can be operated with the standard auxiliary M25 function.
The simple track-loader (793‑39‑101) can be used to auto-load blanks into a spring-loaded collet. The finished parts are ejected into the chute.
A table-mounted cut-off tool can be used, but the other tools must be placed so as to allow clearance for the chute to be extended during part-off cycle.
If the vertical cut-off (693‑39‑101) is used, tools can be placed anywhere on the tooling plate.
The assembly mounts to the parts conveyor (499‑39‑100) and can be operated with the standard auxiliary M25 function.
The simple track-loader (793‑39‑101) can be used to auto-load blanks into a spring-loaded collet. The finished parts are ejected into the chute.
A table-mounted cut-off tool can be used, but the other tools must be placed so as to allow clearance for the chute to be extended during part-off cycle.
If the vertical cut-off (693‑39‑101) is used, tools can be placed anywhere on the tooling plate.
